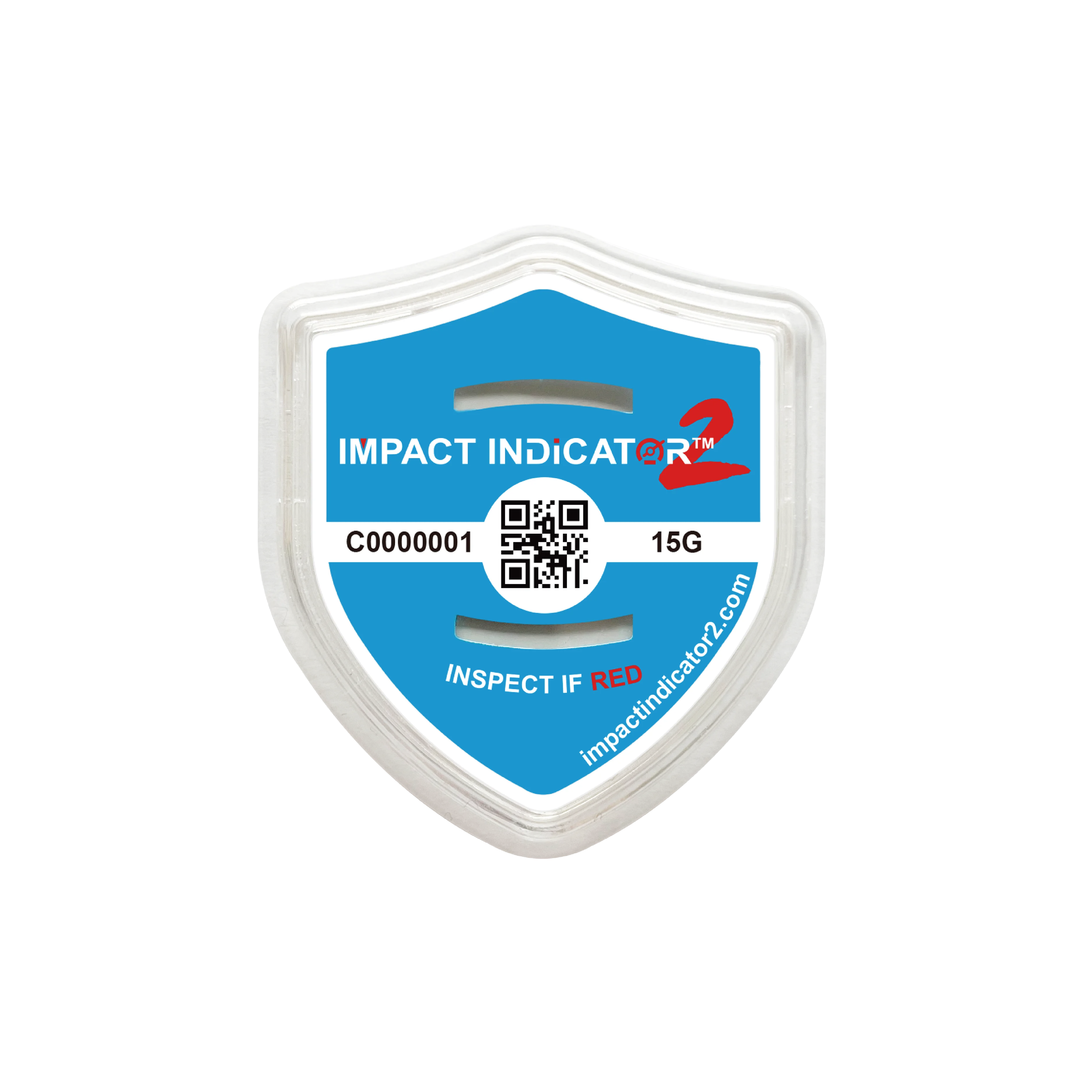

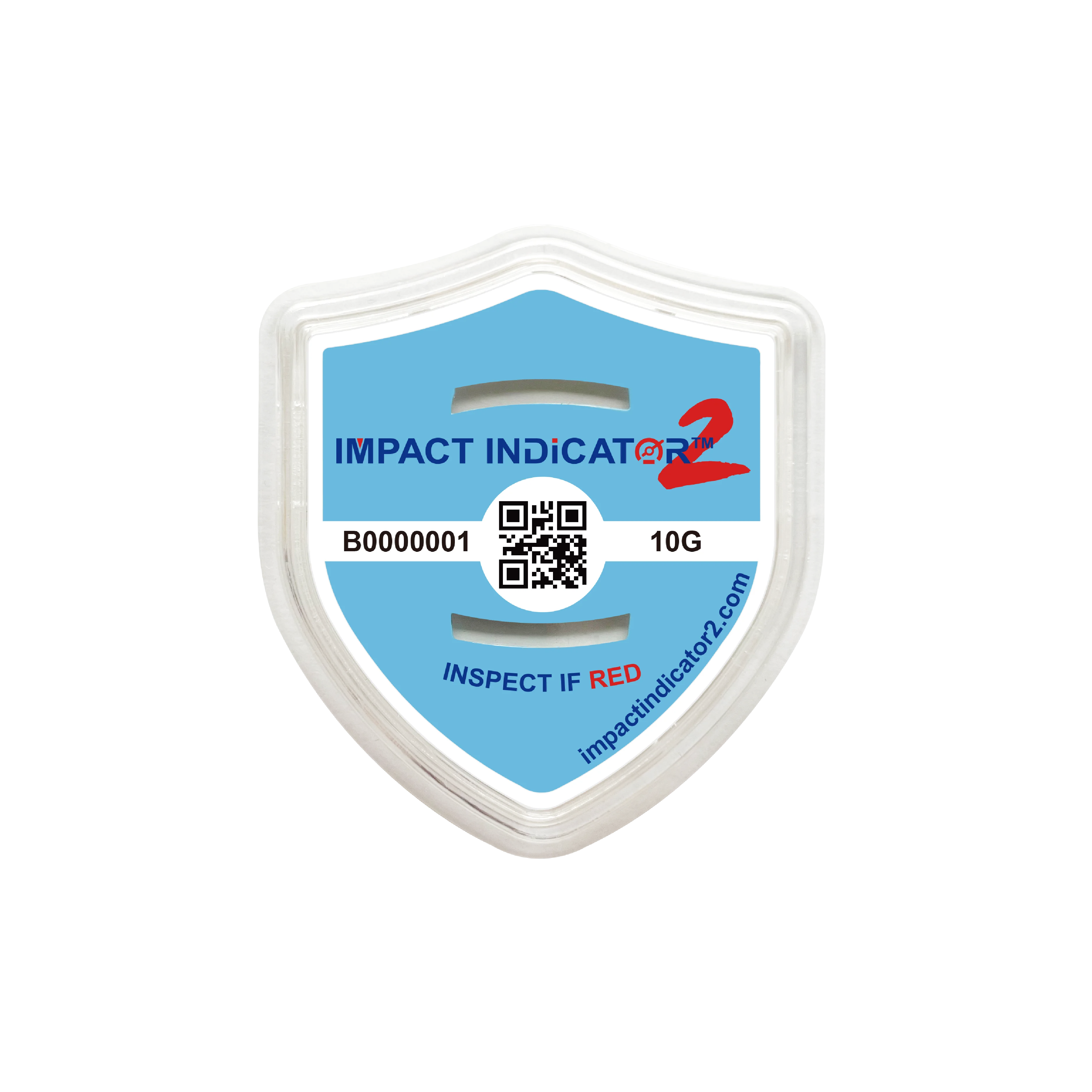

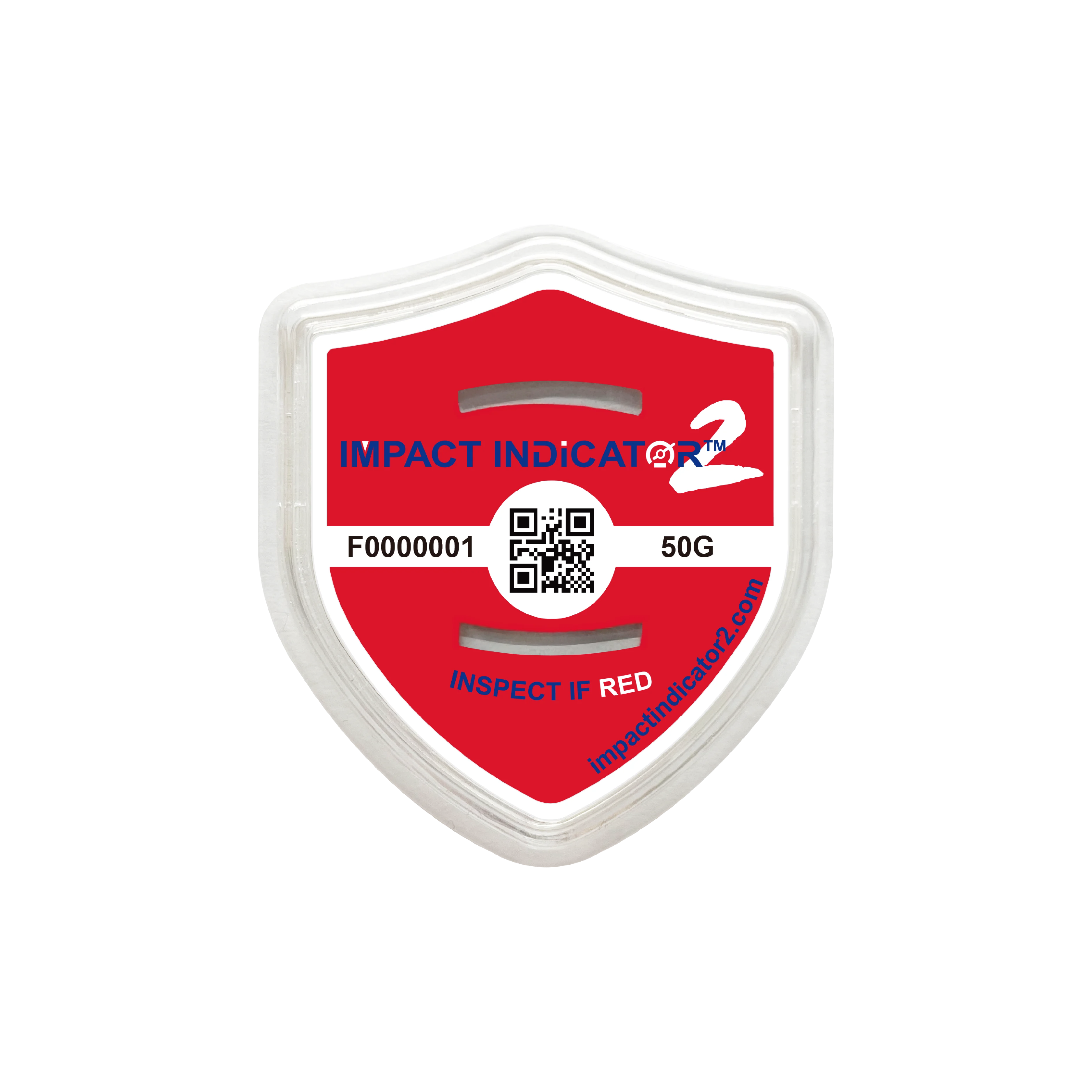

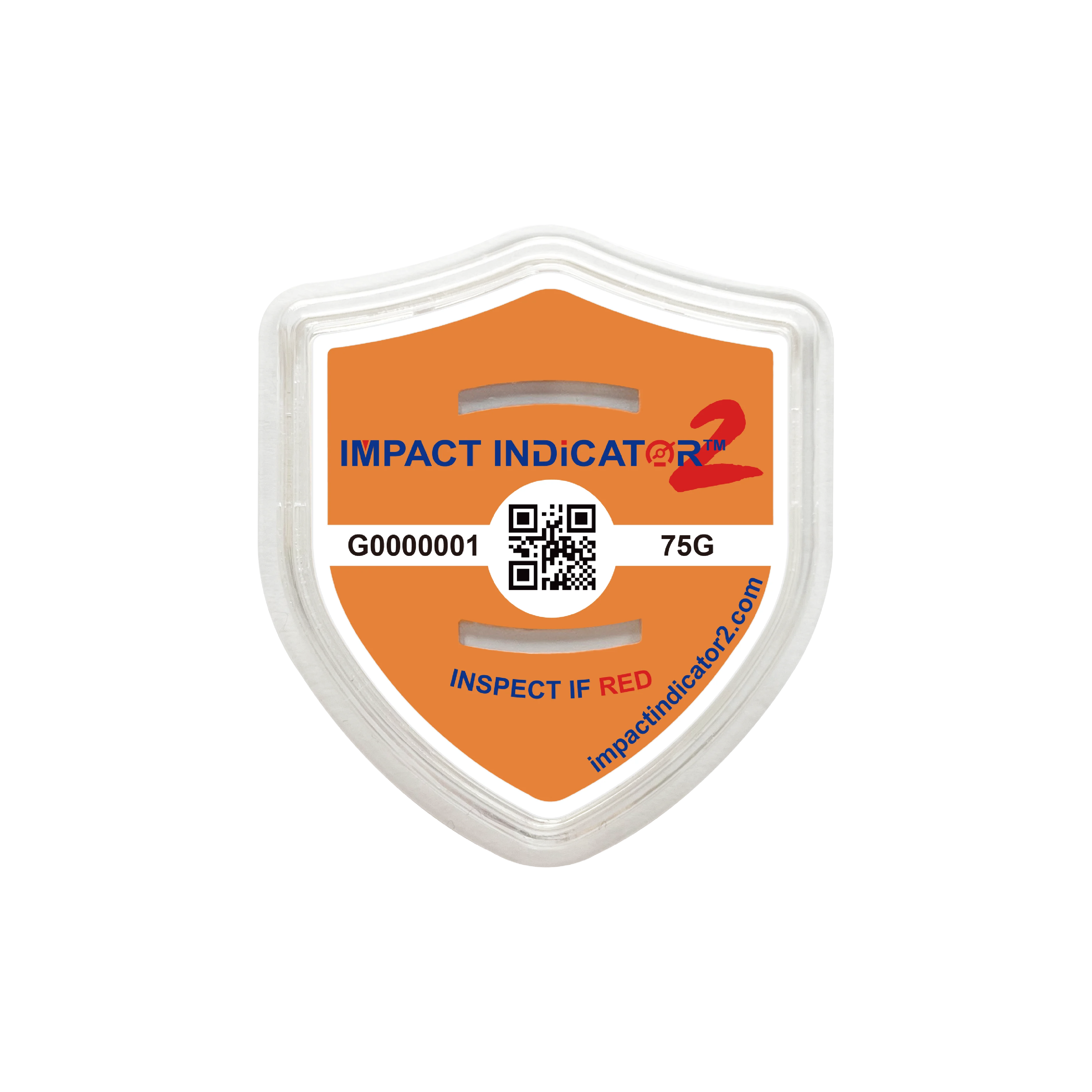

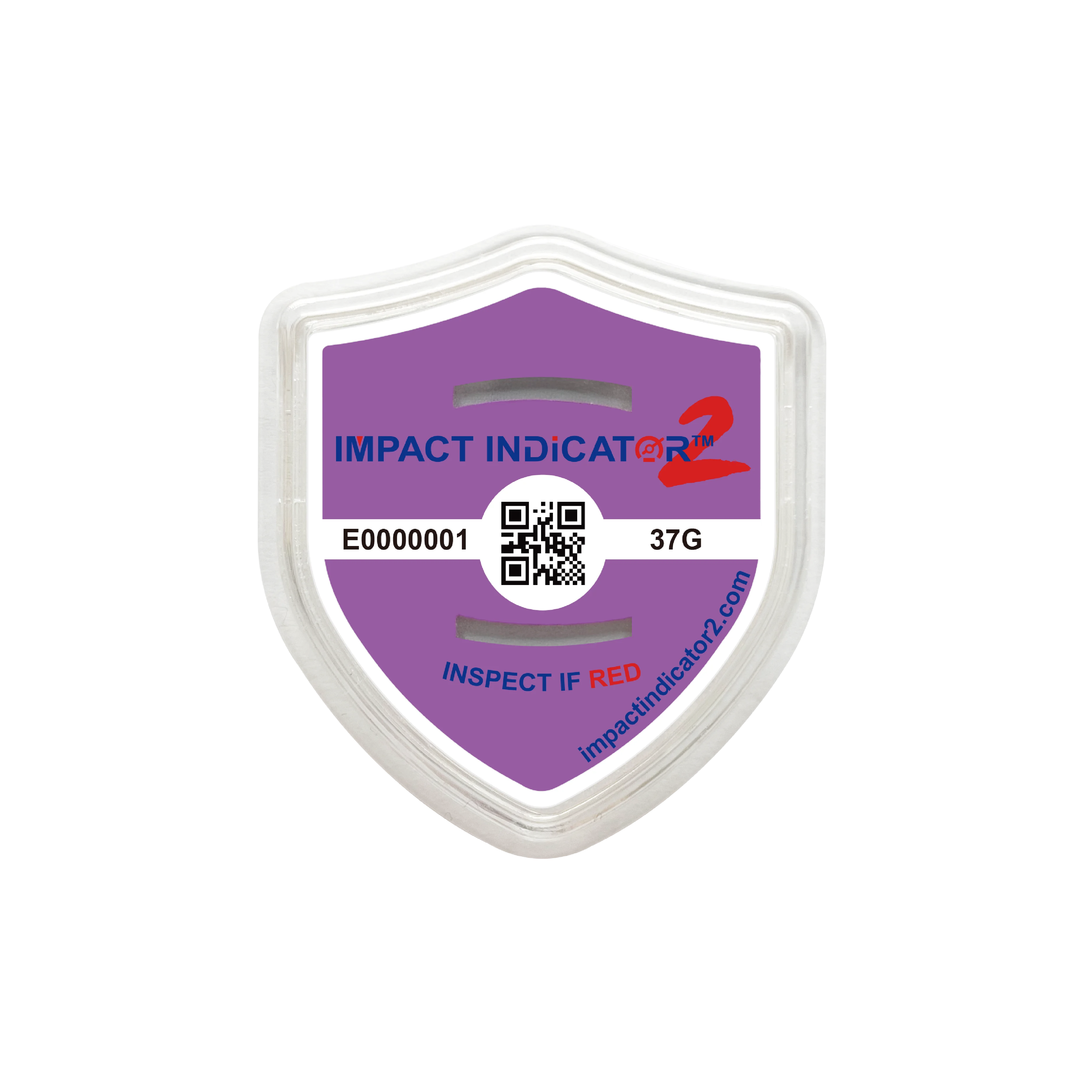

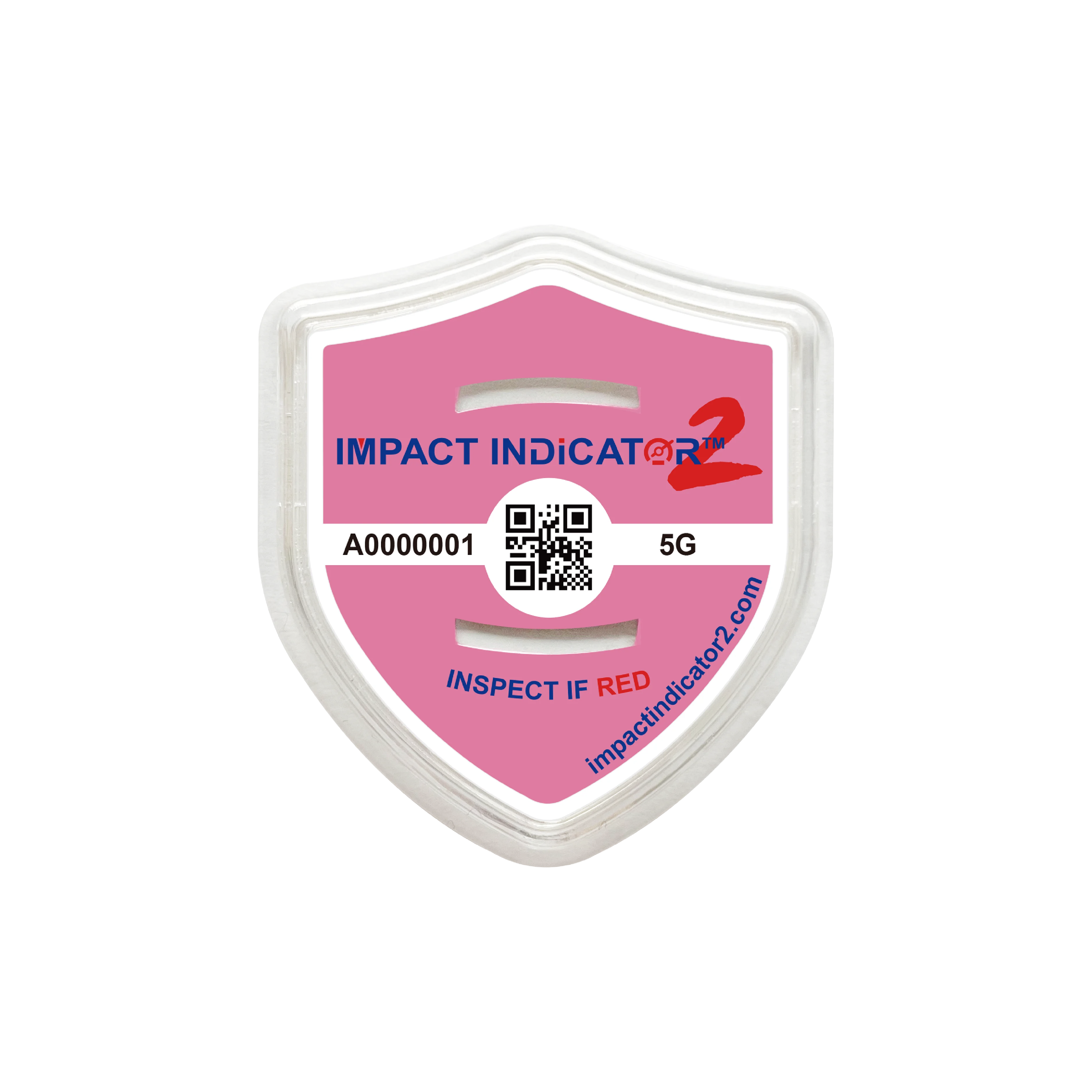

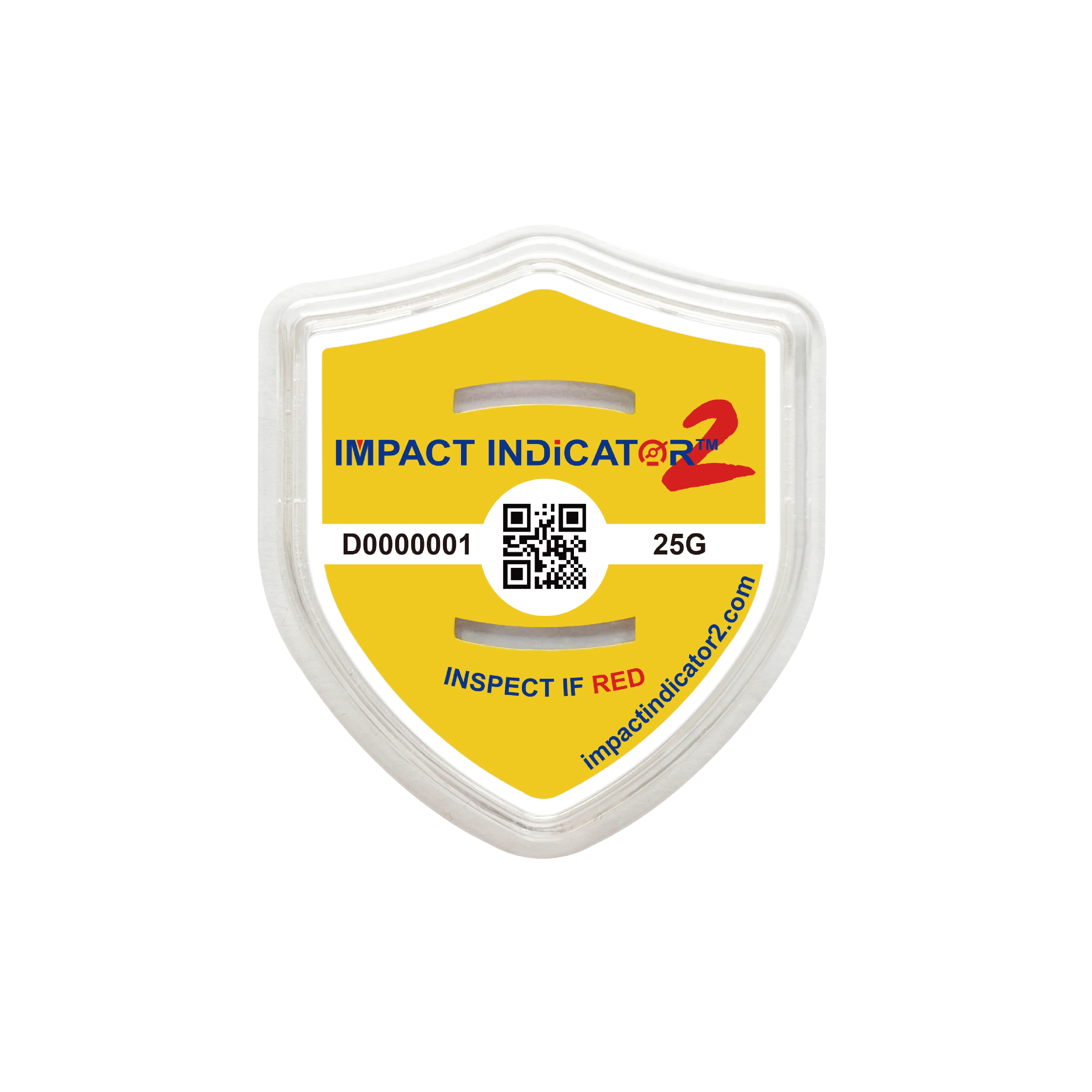

Shock Impact Indicator 2 Impact Label Snsor Sticker Series
Impact Indicator 2 | ShockWatch Authorized Shock Impact Label Sensor

NT$999

Select options This product has multiple variants. The options may be chosen on the product page

Impact Indicator 2 | ShockWatch Authorized Shock Impact Label Sensor

Impact Indicator 2 is a precision shock impact indicator designed to monitor mishandling and impacts during transportation or storage. As a bi-directional shock impact sensor, it accurately detects and records shock events, preventing hidden damages.

Easy to apply as an impact label, it serves as an affordable alternative to electronic devices. Ideal for sensitive equipment, glass, or electronics, the Impact Indicator 2 provides instant visual confirmation of impact, ensuring accountability throughout the supply chain.



  Instant Visual Indication

  No battery or calibration needed.

  Tamper-Proof & Irreversible

  Wide Sensitivity Range

  Compact & Easy to Apply

  Cost-Effective Packaging Upgrade



What Our Shock Impact Indicator Sticker Stands Out:

Proven Accuracy:

Activation rate tolerance within ±15% of preset G level threshold

Fast Lead Time:

Ships within 1-3 days after order confirmation

Quality Guarantee:

100% exchange for any defective product – unmatched assurance in the industry

Select the Suitable Shock Impact Sensor Label

The suitable impact indicator sticker can depend on the fragility, volume and weight of your shipment. Here’s a general selection guide:

Tip: Always select the lowest G-force that will not activate under normal handling but will respond to potentially damaging shocks.

For maximum visibility and effectiveness, attach the indicator to the outer packaging near the corner.

Compared with All Shock Indicators Series

Product Name

Impact Indicator 2

Materials

Iron component, aluminum plate, brass plate, ABS, polycarbonate, semi-gloss paper

Adhesive

Acrylic adhesive

Material Compliance

Non-toxic materials compliant with RoHS

Sensitivity Range

5G, 10G, 15G, 25G, 37G, 50G, 75G

Impact Duration

0.5 to 50 ms

Tolerance

± 15% at 20°C, 1 ATM

Operating Temperature

-25°C to 80°C / -13°F to 176°F

Dimensions

42.5 x 47.5 x5.5 mm

Security

Tamperproof, serialized

Installation

Adhesive backing, or secured with a screw or nail

Shelf Life

2 years from date of sale

Storage Conditions

Standard temperature and pressure (20°C, 1 ATM; 0% to 99% RH non-condensing)

  • 型錄

  • 安裝說明書

How to Use Impact Indicator 2?

Heavy Shipments (Machine-handled)
  • Apply one indicator label to the bottom right corner of the longer side of the package.
  • Place a second label in the same position on the opposite side for better detection and visibility.
Manually Handled Shipments
  • Apply one indicator label to the top right corner of the package.
  • If the long side is at least twice the length of the short side, place a second label in the same position on the opposite side.



Additional Guidelines

Do not place the indicator in the center of the package, as this area may not offer a structurally sound mounting surface, which could affect performance.

Attach an Alert Sticker to the bill of lading to remind the receiver to check the indicator immediately upon delivery.

Specification

5G, 10G, 15G, 25G, 37G, 50G, 75G
