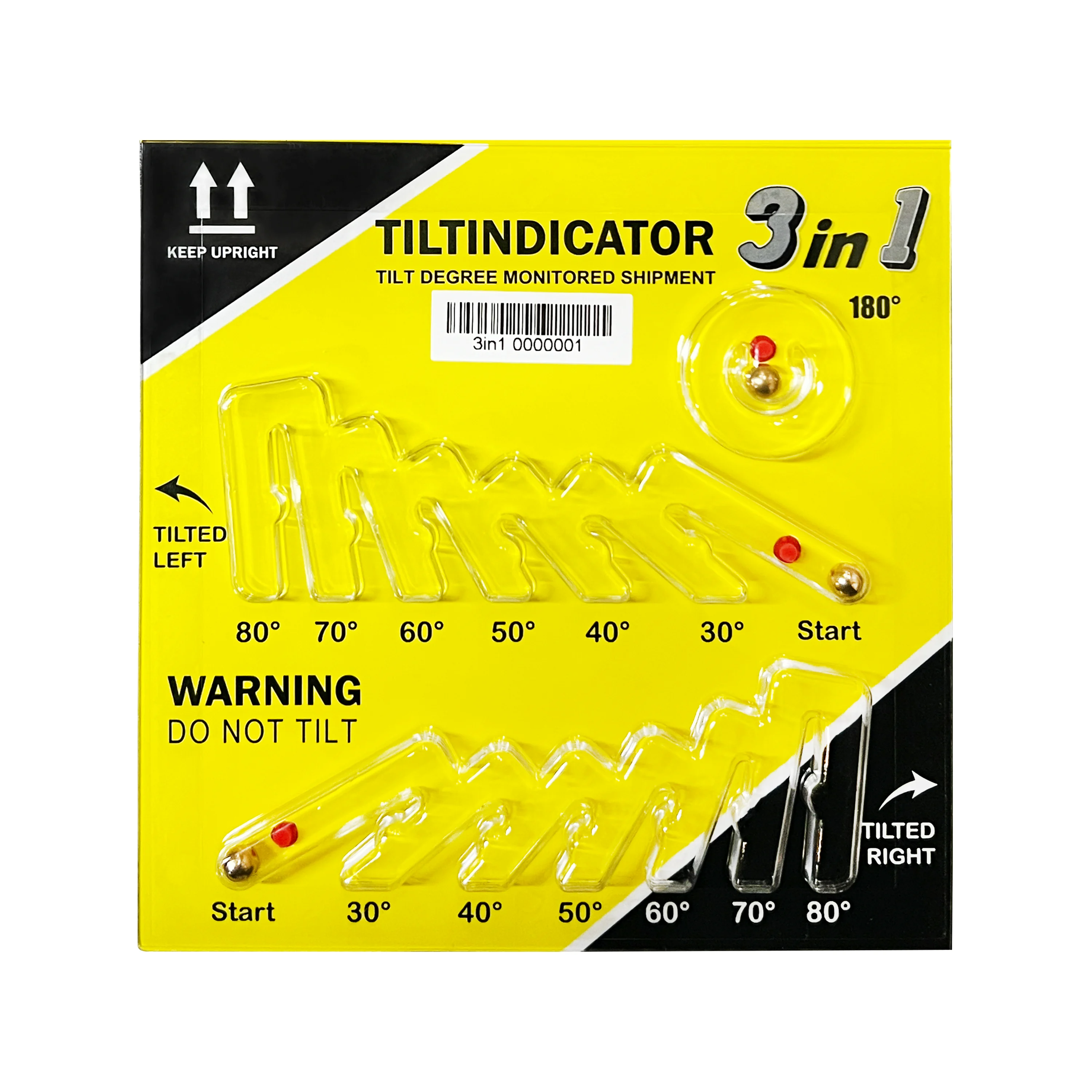

Tilt Indicator 3in1 | PLUS Tilt Indicators with Label for Shipping

Tilt Indicator 3in1 combines three precise tilt indicators in one label, offering complete monitoring of mishandling during transport. As the 3in1 plus tilt indicator with label, it clearly shows the exact tilt direction and degree, ensuring accountability in logistics. Watching your shipment from warehouse to destination.

This device delivers superior visibility, durability, and accuracy for sensitive shipments. Ideal for industrial equipment, electronics, and medical devices, it helps reduce damage claims and improves packaging performance across global supply chains.



  3-in-1 Detection

  Easy peel-and-stick use

  Visual Alert window

  Cost-effective handling control

  Works on boxes, crates & pallets



What Our Tilt Indicator 3in1 for Shipping Stands Out:

Proven Accuracy:

Activation rate tolerance within 5° of preset tilt level

Fast Lead Time:

Ships within 1-3 days after order confirmation

Quality Guarantee:

100% exchange for any defective product – unmatched assurance in the industry

Compared with All Shipping Tilt Indicator Series

Compared with all shipping tilt indicator series, the Tilt Indicator 3in1 covers almost all possible tilt conditions with its multi-angle detection design, providing higher accuracy and clearer visual indication during transit. It’s ideal when precise monitoring or stricter handling control is required.

However, if cost efficiency is the main concern and only single-direction detection is needed, the standard Tilt Indicator label will still serve as a reliable solution.

Product Name

Tilt Indicator 3in1

Materials

Brass beads, ABS, polycarbonate, semi-gloss paper

Adhesive

Acrylic adhesive

Material Compliance

Non-toxic materials compliant

Activation angle

Tilt (left/right) 30°, 40°, 50°, 60°, 70°, 80°; Rollover 180°

Tolerance: ± 5°

Operating temperature

-40°C to 60°C / -40°F to 140°F

Operating humidity

5% to 99%

Dimensions

190 ± 5 x 120 ± 5 x 7.7 ± 1 mm

Security

Tamperproof, serialized

Installation

Adhesive backing

Shelf life

2 years from date of sale

Storage conditions

Standard temperature and pressure (20°C, 1 ATM; 0% to 99% RH non-condensing)

  • 型錄

  • 安裝說明書

Tilt Indicator 3in1 Quick Installation Guide

Hold Tilt Indicator 3in1 upright. Peel off the backing and apply one device to the bottom-right corner of the front of the shipping container.

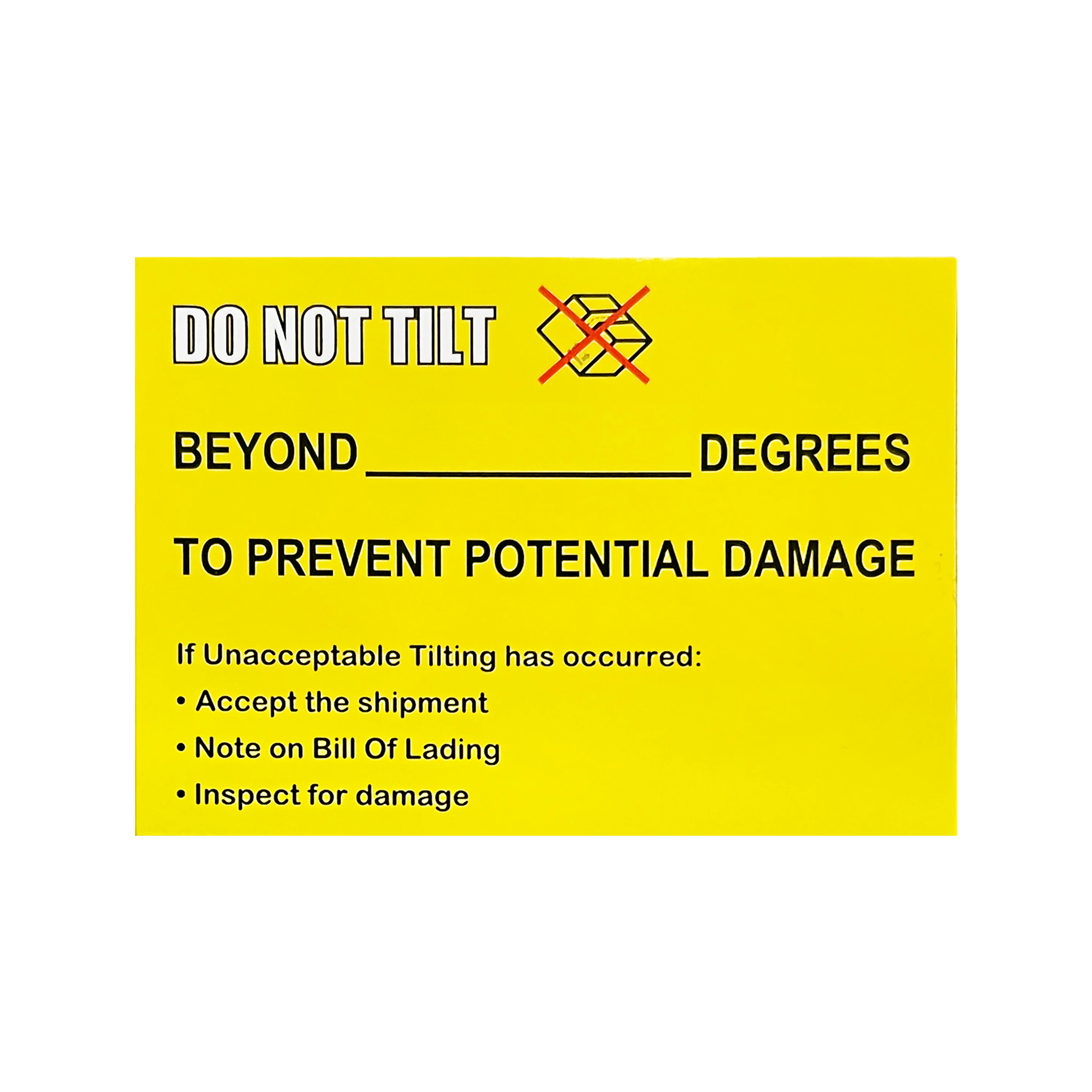

Peel off the backing of the companion label and apply it next to the Tilt Indicator 3in1.

To ensure full directional monitoring, repeat the steps above on one adjacent side of the shipping container.

Clearly mark the maximum tilt angle not to be exceeded on the companion labels.



Notes

Place both Tilt Indicator 3in1 as close to the base as possible for accurate tilt detection.

Press firmly in the center and along the edges to ensure strong adhesion to a clean, oil-free surface.
